Bucket elevator

  • NE, NSE bucket elevator

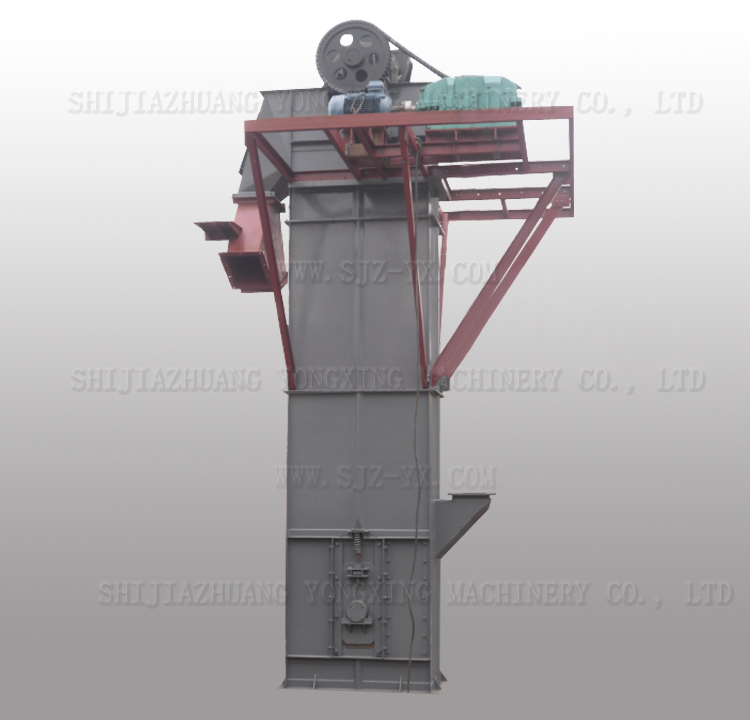

NE, NSE bucket elevator

  • NE, NSE series bucket elevator is suitable for conveying powder, small particles and small pieces of dry materials vertically. This series of equipment has the advantages of simple structure, stable and reliable operation, convenient installation and maintenance, high lifting height and good sealing performance. It is widely used in metallurgy, electric power, chemical industry, mining, building materials, grain and oil industries.


NE, NSE bucket elevator

NE, NSE series bucket elevator is suitable for conveying powder, small particles and small pieces of dry materials vertically. This series of equipment has the advantages of simple structure, stable and reliable operation, convenient installation and maintenance, high lifting height and good sealing performance. It is widely used in metallurgy, electric power, chemical industry, mining, building materials, grain and oil industries.

Structure features and working principle:

NE and NSE series bucket elevator is composed of tail part, head part, bucket chain component, driving device component and fully enclosed casing. There is no leakage of materials during the operation of the equipment. The lifting conveyor chain adopts stamping plate chain, which is divided into single chain and double chain layout. The head is equipped with backstop, which is reliable. The lifting height of the material inlet and outlet of the equipment can be flexibly designed and arranged according to the process requirements.

The material is uniformly introduced into the hopper fixed on the lifting chain for continuous closed operation through the equipment inlet and outlet, and the material is lifted from the tail inlet to the head outlet to discharge, so as to realize single point feeding, single point gravity or mixed unloading.

The lifting conveyor chain adopts the heavy hammer lever type automatic tension device to ensure that the lifting chain always maintains a moderate tension device in operation, so that the equipment is in the best operation state.

Main technical parameters of NE bucket elevator:


Model

Conveying capacitym3/h

Bucket capacityL

Bucket widthmm

Bucket pitchmm

Bucket speedm/s

Spindle speedr/min

Maximum material widthmm

NE15

15

2.5

250

203.2

0.5

19.5

--

NE30

32

7.8

300

304.8

0.5

16.45

65

NE50

60

14.7

300

304.8

0.5

16.45

65

NE100

110

35

400

400

0.5

14.13

95

NE150

170

52.2

600

400

0.5

14.13

95

NE200

210

84.6

600

500

0.5

10.9

125

NE300

320

127.5

600

500

0.5

10.9

125

NE400

380

182.6

700

600

0.5

8.3

145

NE500

470

260.9

700

700

0.5

7.1

165

NE600

600

300.2

700

700

0.5

7.1

165

NE800

800

501.3

800

800

0.5

7.1

195

Main technical parameters of NSE bucket elevator:


Model

Conveying capacity m3/h

Bucket capacityL

Maximum chain speedm/min

Maximum particle size of materialmm

Percentage%

10

25

50

75

100

NSE100

170

73

65.4

20

15

10

7

5

NSE200

230

97

65.4

35

30

20

15

10

NSE300

308

121

65.4

35

30

20

15

10

NSE400

360

157

65.4

50

40

30

25

20

NSE500

480

210

65.4

50

40

30

25

20

NSE600

600

240

66

50

40

30

25

20

NSE700

700

280

66

65

60

40

35

30

NSE800

800

320

66

65

60

40

35

30

NSE1000

1000

391

66

65

60

40

35

30
